Sunday 10 May 2020

Video Tutorial : VB Modbus SCADA with AdvancedHMI

- 0 komentar


Introducing AdvancedHMI to build SCADA (Modbus TCP Client) application in Visual Studio. I do not share the project files, because i think if you follow the steps in video then you can practice and learn better. Thank you.

[Continue reading...]

Saturday 9 May 2020

Video Tutorial : VB Modbus SCADA House Monitoring

- 0 komentar


How to make SCADA application for House (Simulation) please see the previous video here: https://youtu.be/GMceNxKlq-w TimeSteps: 00:04 Form Modification 09:25 Coding 14:50 Test I do not share the project files, because i think if you follow the steps in video then you can practice and learn better. Thank you.
[Continue reading...]

Thursday 7 May 2020

Video Tutorial : VB Modbus Multi Clients with Easy

- 2 komentar


This video shows How to create desktop application using Visual Basic language in Microsoft Visual Studio 2019 to connect to multiple Modbus TCP Servers. In this project we will use EasyModbus library browsed from our previous project. and we will use multiple Mod_RSsim as Modbus TCP Server Simulator, can be downloaded from here: http://www.plcsimulator.org/downloads TimeSteps: 00:04 Form Design 07:33 Coding 18:14 Test Connection 21:43 Read and Monitoring The project source code can be downloaded here: https://drive.google.com/open?id=10qhOQDDtHBPnFNSznQoozeW4B6453B6r


Thank you.
[Continue reading...]

Wednesday 6 May 2020

Video Tutorial : VB Modbus Trending Chart

- 0 komentar
Please see the previous video : Visual Basic Modbus TCP Client to MySQL Database https://youtu.be/QUTkz4FxDjM



This video is the advanced step, now we will create a standard Chart for Trending Realtime monitoring Modbus TCP data. This time we will deactivate logging function to MySQL database because we will focus on Trending function. TimeSteps: 00:04 Form Modification 06:34 Coding 11:27 Test The project source code can be downloaded here: https://drive.google.com/open?id=19eBKlvW_o5SdPKY0SigTkSbXd8qf5n3Q


Thank you.
[Continue reading...]

Tuesday 5 May 2020

Video Tutorial : VB Modbus TCP Client to MySQL Database

- 2 komentar


Please see the previous video :
Visual Basic Modbus TCP Client
http://hadiscada.blogspot.com/2020/05/video-tutorial-visual-basic-modbus-tcp.html

This video is the advanced step, now we will do monitoring Modbus TCP data then logging to MySQL database.


TimeSteps:
00:04 Form Design
05:50 Setup MySQL Database and Table
07:58 Scripting
17:50 Test


The project source code can be downloaded here:
https://drive.google.com/open?id=1Cv8CU8a_tDqLM3YimtGDiuwmxWwJJ-3m


Thank you.
[Continue reading...]

Monday 4 May 2020

Video Tutorial : Visual Basic Modbus TCP Client

- 0 komentar


This video shows How to create Modbus TCP Client desktop application using Visual Basic language in Microsoft Visual Studio 2019. In this project we will add EasyModbus library using Nuget Package Manager.
and we will use Mod_RSsim Modbus Simulator, can be downloaded from here: http://www.plcsimulator.org/downloads The project source code can be downloaded here: https://drive.google.com/open?id=1hIRpKCkbE_i5zxXpqpNKh4p6xr8XKLd-


Thank you.
[Continue reading...]

Sunday 3 May 2020

Modbus Logger Expert

- 2 komentar
ModLogX (Modbus Logger Expert) is an application for logging data from Modbus TCP Server or Modbus RTU Slave to SQL database or File or Cloud, and other function.


The features / functions :
1. Connect to Modbus TCP Server/ RTU Slave or act as Modbus TCP Server/ RTU Slave
2. Tag Management for easy access Modbus Register
3. Trending for each tag or group
4.  Log to file (CSV or TXT)
5. Log to SQL (MS SQL Server or MySQL)
6. Log to cloud (Firebase Realtime Database) for access data from mobile device (optional)
7. Alarm configuration based on status/value of tags
8. SMS notification when alarm active
9. Save all configuration to file and Open from file.

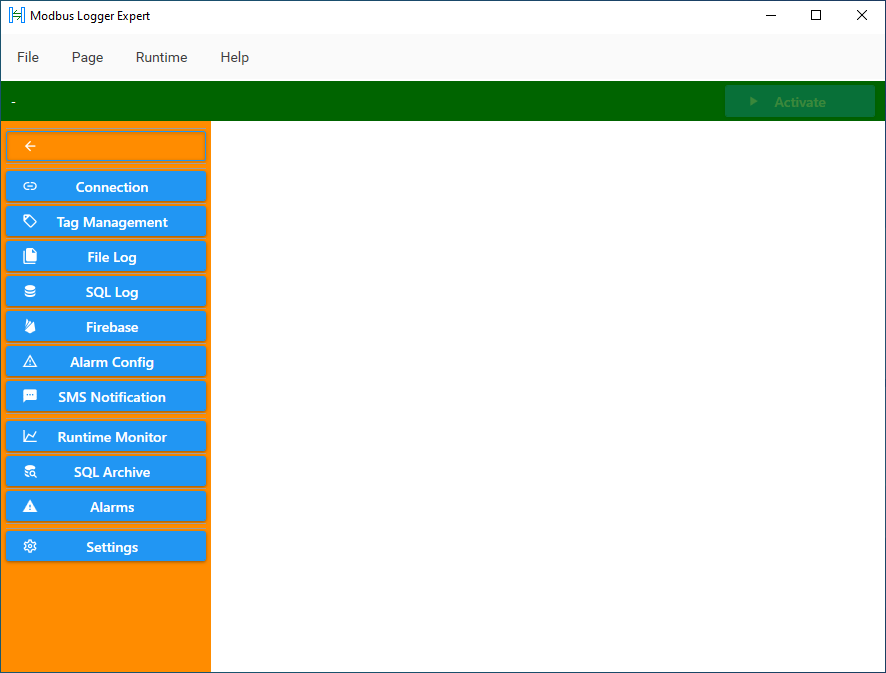

Here are some screenshots and few steps to follow:

> open Connection page, click Edit button (icon pencil) then define the connection.

> open Tag Management page, click Add Group button (icon plus) then create new group with defined Start Modbus Register and Length Register to read. then click Add Tag button to create some tag with each Register address defined.

> click menu File > Save, then write your filename. Make sure your Modbus Server was running (here I use Modbus Simulator), then click Activate button.

 > to show the trending, click on the tag then click Trend button (icon line chart).


for more information please ask us by email to:
hadiScada@gmail.com
or Whatsapp message to:
+6281212129806

Please download ModLogX demo exe file from here:
https://app.box.com/s/4m5xaj4rkeuedkezo1j7a99qvj01z64m


Thank you!
